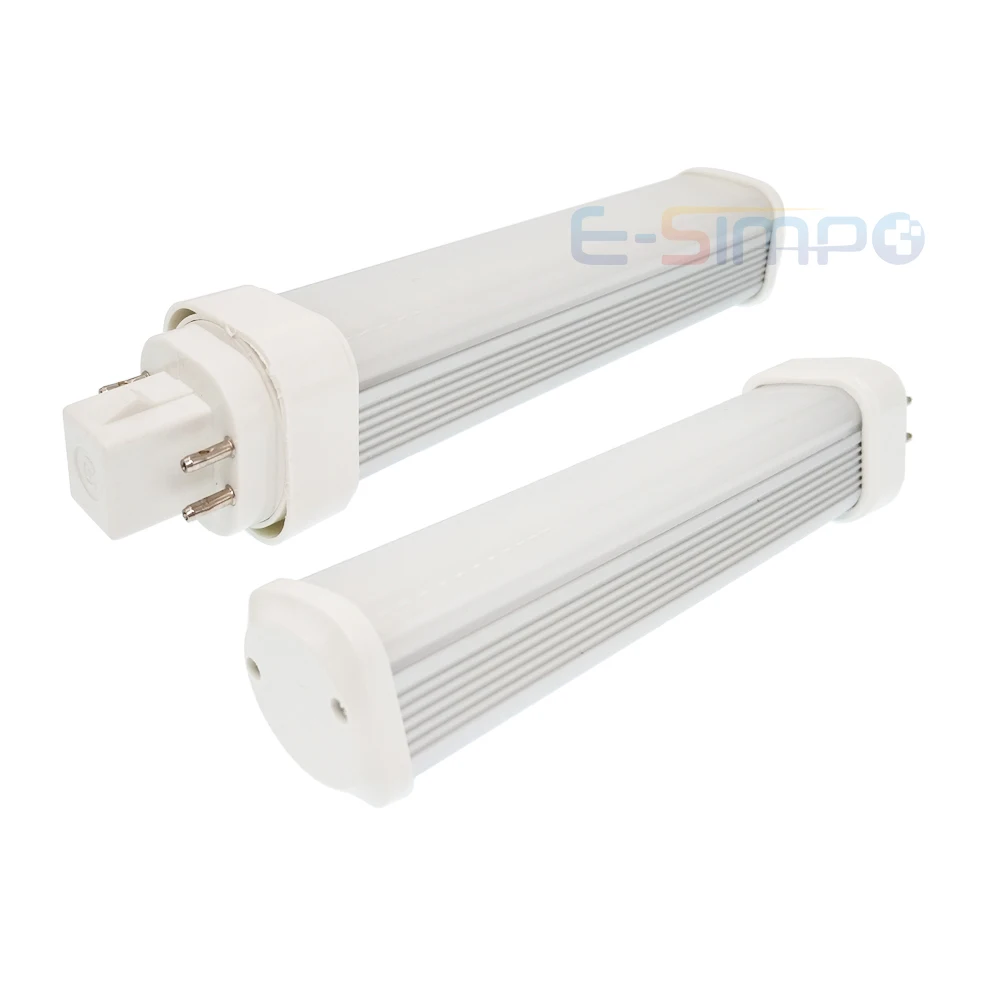

Wholesale 7W G24 LED PL Lamp Light 4pin G24q 2 Pin G24d Bulb PL-C 12W 13W CFL Replacement Office Horizontal Retrofit Ceiling Downlight


7W G24 LED PL Lamp Light 4pin G24q 2 Pin G24d Led Bulb PL-C 13W CFL Replacement CE RoHS Office Horizontal Led Retrofit Light
Note:This LED PL Lamp can work with inductance ballast, just plug and play; but can not work with electronic ballast. You have to bypass the electronic ballast before install the LED Lamp.
Mostly for 2Pin CFL lamp fixture has an inductance ballast inside;  while 4Pin CFL lamp fixture with an electronic ballast inside.

Note:
THE ELECTRONIC BALLAST IN YOUR FIXTURE MUST BE REMOVED OR BYPASSED FOR THESE ADAPTERS TO FUNCTION PROPERLY. CONSULT AN ELECTRICIAN IF YOU ARE UNSURE. DO NOT OPERATE A LED BULB WITH A BALLAST IN THE FIXTURE,Otherwise the LED Lamp witll get flicking, burnt, smell, damaged.

How to bypass the ballast?
1. Turn Off the Power.
2. Find the Ballast. Usually it is embedded inside the ceiling fixture. Please pull off the existing PL lamp, reflector. Leave wire in junction box. and find the ballast.
3. Normally, the Ballast has a black and white wire on the input side (AC input side, 100V -120V for North America). It also has two red and two blue output wires. To bypass this ballast, please cut all the Input and output wires, so total 6 wires cut.
4. Then, you can connect the two red wires to the black wire.
5. Next, connect the two blue wires to the white wire. now ballast is bypassed.


Product Description
PL LED Replace 2U Fluorescent lamp


Specification

Item  G24D-7W,  G24Q-7W

Size
G24D-7W: 34*144mm
G24Q/GX24Q-7W: 34*138mm

Lumen: 600-800Lm
Replacement: 7W LED Equal to CFL PLC-13W
LED: SMD 2835
Color Rendering Index(Ra):more than 82
Input voltage: AC85-300V 50/60Hz
Beam angle: 180o Sideview
Materials: Aluminium Alloy + PC Cover
Color Temperature(CCT)Warm white(3000-3500K),
Natural white(4000-4500K),
Cool white(6000-6500K)


Please throw away the electronic ballast before install this lamp.


Features
1. Low heat, low power consumption, more than 60% energy saving than traditional fluorescent lamps and environmental friendly;
2.180 degree rotatable lamp base to adjust the direction of light;
3. G24D/GX24Q standard base.
4. No lead, NO mercury,No UV or IR radiation, started without delay;
5.compatible with G24d-1(G24q-1)/G24d-2()/G24d-3()/G24d-4()
G24q-2 G24q-3 G24q-4 ideal replacement for traditional energy saving Downlight for CFL excellent heat dissipation,ong lifespan,can work for up to 30000hrs;
6. High Color Rendering Index,RA>82. Ideal for both commercial andresidential applications such as Desk Lamp, Wall sconces,Recessed can lighting for down light,Step lighting.
Wide operation voltage ranges,sutiable for use throughout the world,l
